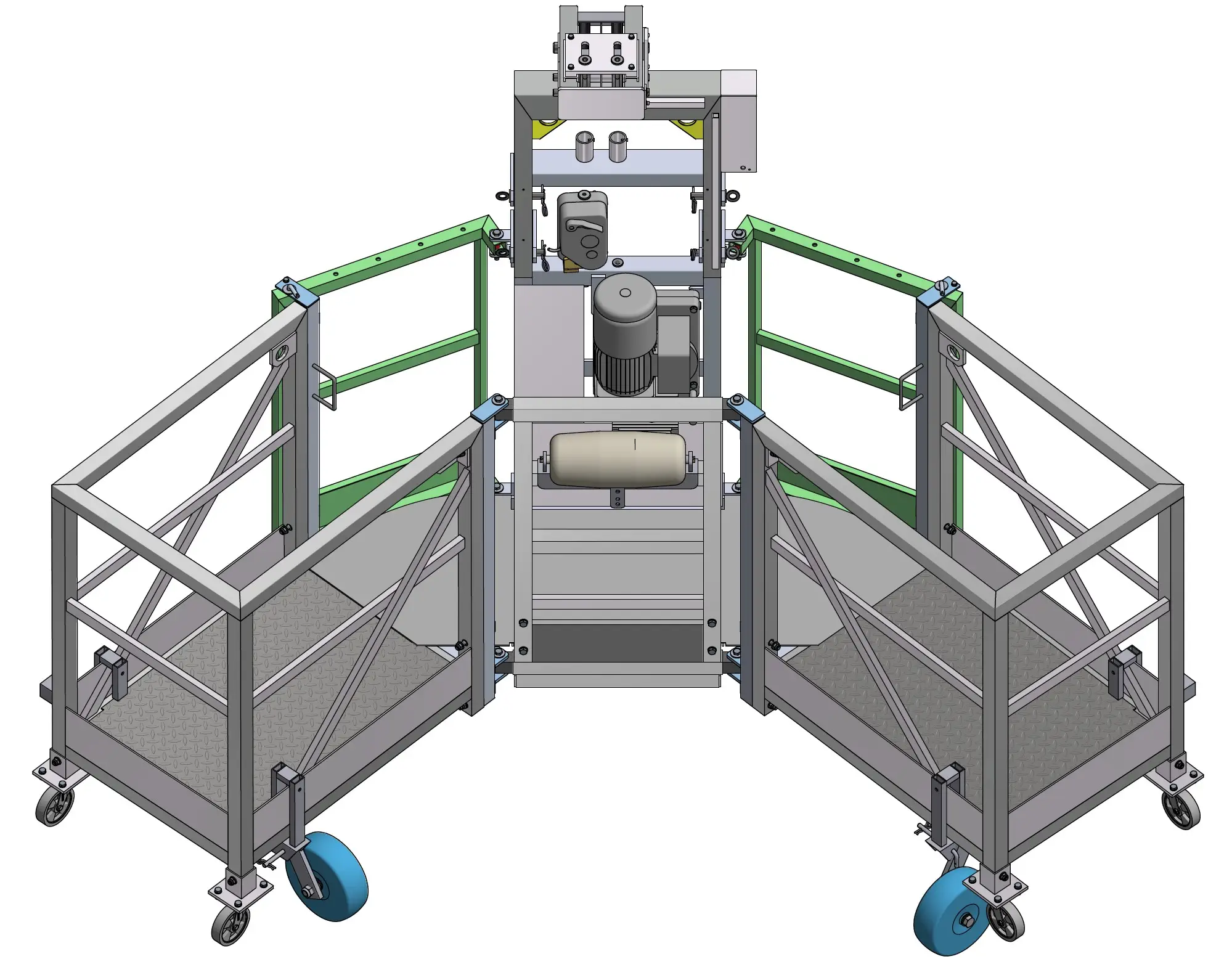

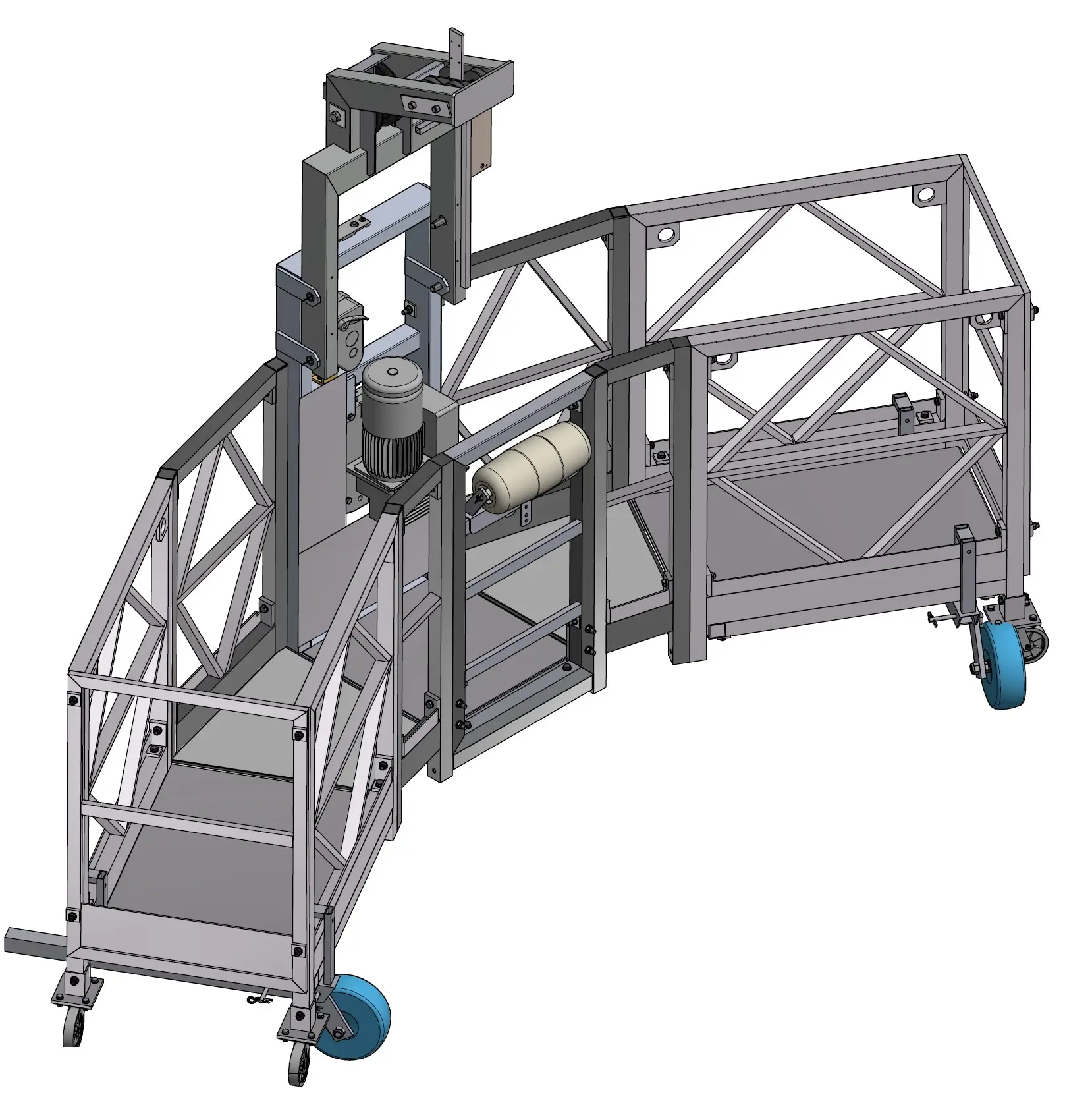

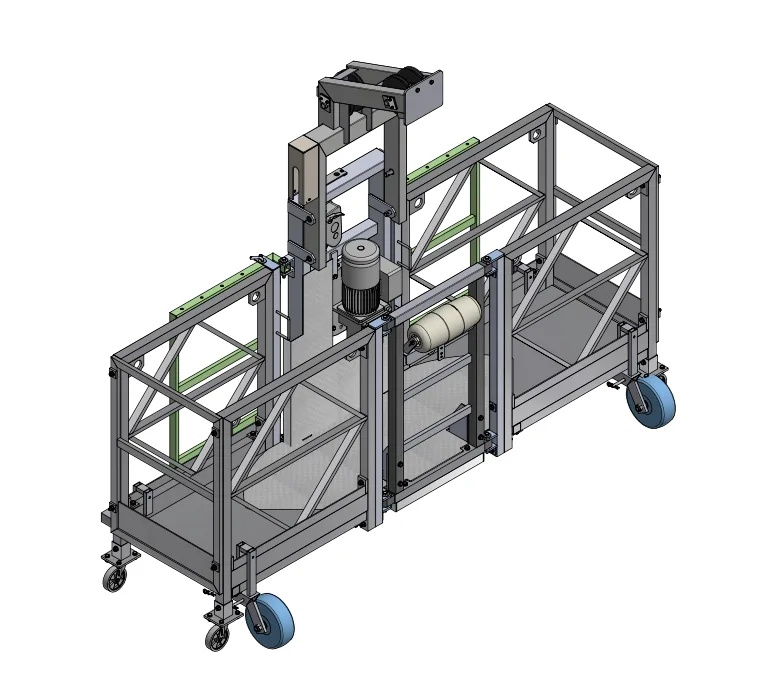

K-TP-B
Sales, rental, service, training, worldwide
Product information
- Tower access systems
- Optimum working position
- Adaptation through variable unwinding
- Quick & easy installation
- TÜV tested
Technical information
Dead weight of working platform:
Transport dimensions (LxWxH):
Payload:
Drive:
Rope speed:
Safety gear:
Travel/safety rope:
Control:
Safety class:
Material / Coating Basket:
Conditions of use: Temperature, wind:
Required power output:
Energy supply:
Electrical supply cable:
Assembly time:
320 kg
2938 mm x 800 mm x 2435 mm
400 kg
1 x X823 P - 800 kg
9/18 m/min
BSO 1020 P
Ø9 mm
Pendant control
IP 55
Aluminum / natural
-20° to + 40 ° C / up to max. 8 m/s
Minimum 10 kVA
400 V / 50 Hz / 32 A
5 x 4 mm2 (IP 44)
0.25 hours + rope installation
Own weight of work platform:
320 kg
Transport dimensions (LxWxH):
1650 mm x 835 mm x 2938 mm
Payload:
400 kg (3 people + equipment)
Drive:
1x X823 P - 800 kg
Rope speed:
9 m / min; 18 m / min
Safety gear:
BSO 1020 P
Travel/safety rope:
Ø9 mm
Control:
Pendant control
Safety class:
IP 55
Material / coating Basket:
Aluminum / natural
Conditions of use: Temperature, wind:
-20° to + 40 ° C / up to max. 8 m/s
Required power output:
Minimum 10 kVA
Voltage:
400 V / 50 Hz / 32 A
Electrical supply cable:
5 x 4 mm2 (IP 44)
Assembly time:
0.25 hours + rope installation
